HTTP

Contents

1. What is HTTP?
2. HTTP Requests
3. HTTP Responses
4. IP address and ports

What is HTTP?

• HTTP (Hypertext Transfer Protocol) is a TCP/IP based communication protocol, which provides a standardized way for computers to communicate with each other
• The communication happens between a client (browser, application…) and a server
  • The client sends a request, and the server returns a response
• HTTP is connectionless:
  • The client and server are only aware of each other during the request-response phase
  • After that, each new request is sent through a new connection

But what is TCP/IP?

• It is known as the Internet protocol suite
• Framework used for organizing communication protocols over the Internet
  • TCP = Transmission Control Protocol
    • Controlled stream of bytes between applications communicating via an IP network
  • IP = Internet Protocol
    • Delivering packets from host to destination with IP addresses

HTTP structure

• The HTTP protocol acts as a communication bus between the web client (e.g. web browser) and the web server
• There can be multiple clients connected to the server simultaneously
• The clients are not connected to each other but only to the server

HTTP requests

• HTTP defines a set of request methods
• The most common requests are GET, POST, PUT and DELETE
  • These are needed to create a basic CRUD app (Create, Read, Update, Delete)
• More requests are listed in the mdn web docs

HTTP Method	Usage	Example Use
GET	Retrieve content	Browser fetching a webpage
POST	Add new data	Submitting a form to create a new account
PUT	Update existing data	Updating user profile information
DELETE	Remove existing data	Deleting a user account

Note: URI vs URL

• The website address is more formally known as the URL (uniform resource locator)
  • https://maps.google.com
  • https://maps.google.com/maps?q=Oulu (includes a query)
• It is a subset of an URI (uniform resource identifier)
  • This identifies any type of a resource
  • mailto:info@example.com (an email address)
  • https://www.example.com/index.html#date (A section of a website)

HTTP request format

• Request line: <request method> <request URI>
  • Example: GET https://example.com/products
• Headers (optional)
  • Example: Date: Mon, 07 Sep 2020 08:39:33 GMT
  • Example: Content-Type: application/json
• Body (optional)
  • Example in the JSON format:

    {
      "date": "2020-09-08T11:39:34.2837813+03:00",
      "temperatureC": 11,
      "temperatureF": 51,
      "summary": "Cool"
    }


HTTP request examples

Method	URI	Headers	Body
GET	http://server.com/
GET	http://server.com/10
POST	http://server.com/users	Content-Type: application/json	{"name": "Dan"}
PUT	http://server.com/users/2	Content-Type: application/json	{"name": "Danny"}
DELETE	http://server.com/users/2

HTTP response format

• HTTP responses have the following format:
  • Status line: <HTTP version> <status code> <reason phrase>
    • Example:HTTP/1.1 200 OK
  • Headers (optional)
    • Date: Mon, 07 Sep 2020 08:39:33 GMT
    • Content-Type: application/json
  • Body (optional)

    {
      "date": "2020-09-08T11:39:34.2837813+03:00",
      "temperatureC": 11,
      "temperatureF": 51,
      "summary": "Cool"
    }


HTTP status codes

• The status line of HTTP a response sent by an API should accurately describe the status of what happened on the server after each request:
  • Did the operation succeed? (2xx status codes)
  • Was there an error with the request? (4xx status codes)
    • E.g., the request line was malformed, or the server doesn't support it
  • Did a server-side exception occur? (5xx status codes)
    • This is never the client's fault!

Status codes for a CRUD app

• Your APIs should use the following status codes for responses to CRUD operations
• See Restfulapi.net and Wikipedia HTTP status code listings

2xx SUCCESS	4xx CLIENT ERROR	5xx SERVER ERROR
200 - OK	400 - Bad Request	500 - Internal Server Error
201 - Created	401 - Unauthorized
204 - No Content	403 - Forbidden
	404 - Not Found
	409 - Conflict

IP and ports

IP addresses

• Every node, or host on a computer network needs an IP (Internet Protocol) address
  • These can be public or private
  • Serves two functions: identifies and provides the location of the host
• The old 32-bit IPv4 addresses are of the form 192.0.2.1
• The 128-bit IPv6 addresses are of the form 2001:0db8:0000:0000:0000:8a2e:0370:7334 (can be shortened to 2001:db8::8a2e:370:7334)

Port numbers

• The IP address is often followed by a port number separated by a colon: 192.0.2.1:8080
• The port number (16-bit unsigned integer) defines the port through which communication to your application happens
• Ports allow multiple applications to be located on the same host
• The client connects to this port in some server (defined by an IP address), so the client and the server are able to communicate
• Computers have several different ports at their disposal

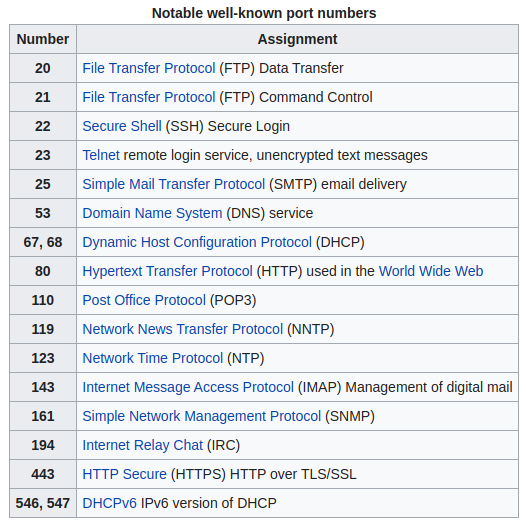

Reserved ports

• Some of them are reserved and your application might not be able to assign those ports to itself
• Ports from 0 to 1023 are system ports
  • There are restrictions in manually assigning applications to use them
• Generally, ports from 1024 to 65535 are available for the user to assign for applications
