marp	paginate	math	theme	title
true	true	mathjax	buutti	5. Databases with Entity Framework

Databases with Entity Framework

Entity Framework (EF)
Code First approach
Migrations
Database First approach

Entity Framework (EF)

Entity Framework is an Object-Relational Mapper (ORM) made by Microsoft for the .NET framework
- Object-Relational Mapping: converting from database representation to objects in a programming language
Allows creation of CRUD operations without writing SQL

Entity Framework Core (EF Core)

EF Core is a cross-platform version of EF
Can be used outside of the .NET framework unlike normal Entity Framework
Open-source, lightweight, extensible
Supports many database engines, such as MySQL, PostgreSQL, and so on
This is what we'll be using

Code First vs Database First vs Model First

There are three approaches through which Entity Framework can be implemented
- Code First
- Database First
- Model First
Database First and Code First are the most used ones and will be introduced in this lecture

Note about loading data

In EF Core, you can use navigation properties in your model to load related entities
There are three common ORM patterns to load related data
- Eager loading: the related data is loaded from the database as part of the initial query.
- Explicit loading: the related data is explicitly loaded from the database at a later time.
- Lazy loading: the related data is transparently loaded from the database when the navigation property is accessed.

Code First approach

Code First

In the Code First approach, Entity Framework will create databases and tables based on defined entity classes
Good for small applications
Other advantages include:
- You can create the database and tables from your business objects
- You can specify which related collections are
  - eager loaded
  - not serialized at all
- Database version control
Not preferred for data intensive applications

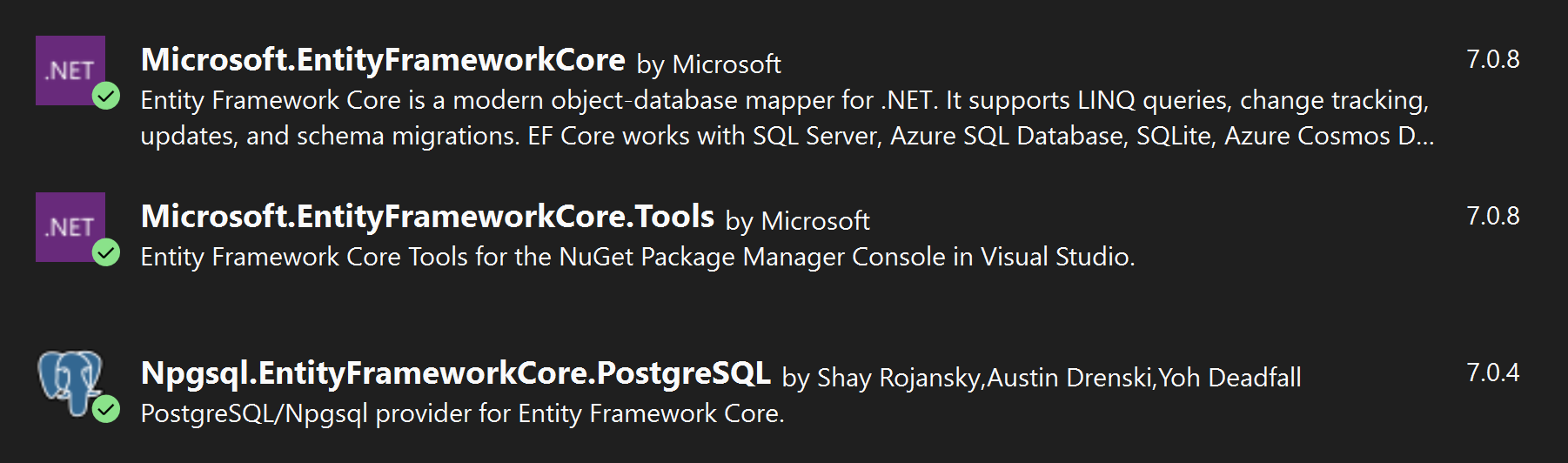

Required Packages

Install and add the following packages to your project:
- Microsoft.EntityFrameworkCore
- Microsoft.EntityFrameworkCore.Tools
- Npgsql.EntityFrameworkCore.PostgreSQL

Code First: `DbContext`

Let's begin with the Code First Approach
The DbContext class of EFCore is the bridge between the code representation of your data (entities) and the database
DbContext holds a) methods to form the database schema with Code First approach and b) classes to keep the database up-to-date with CRUD operations
- DATABASE \Rightarrow CODE: DbSet class property in DbContext can be queried directly with LINQ and this results in an object in your code
- CODE \Rightarrow DATABASE: DbSet also has methods like Add, Update and Remove to make changes to the database from your code

Creating a context

Create a context that inherits from DbContext
- Commonly located in the Models folder, but ideally should be in a separate abstraction/repository folder (for example Repositories)
The class needs to have a constructor that calls the base constructor with
```
: base(options)
```

Create a DbSet property for each resource

public class ContactsContext : DbContext
{
    public DbSet<Contact> Contacts { get; set; }
    public ContactsContext(DbContextOptions<ContactsContext> options) : base(options) { }
}

To further configure how the database will be structured, override the OnModelCreating method

In this example, one table named Contact with columns Id, Name and Email will be created:

public class ContactsContext : DbContext
{
    public DbSet<Contact> Contacts { get; set; }
    public ContactsContext(DbContextOptions<ContactsContext> options) : base(options) { }

    protected override void OnModelCreating(ModelBuilder modelBuilder)
    {
        modelBuilder.Entity<Contact>().ToTable("Contact");
    }
}

In this example, the Contact table will be created with some starting values for Id, Name and Email columns:

public class ContactsContext : DbContext
{
    public DbSet<Contact> Contacts { get; set; }
    public ContactsContext(DbContextOptions<ContactsContext> options) : base(options) { }

    protected override void OnModelCreating(ModelBuilder modelBuilder)
    {
        modelBuilder.Entity<Contact>().HasData(
            new Contact { Id = 1, Name = "Johannes Kantola", Email = "johkant@example.com" },
            new Contact { Id = 2, Name = "Rene Orosz", Email = "rene_king@example.com" }
        );
    }
}

DbContext as a Service

In Program.cs, add the context to services with AddDbContext method
This is where you set the DB management system you want to use (MySQL, PostgreSQL, SQLite...)
- The EFCore support for PostgreSQL is called Npgsql as in the package name

Add the server, host, port, username, password and the database name of the existing database inside options.UseNpgsql as a connection string:

services.AddDbContext<ContactsContext>(options => options.UseNpgsql(
  @"Server=PostgreSQL 12;Host=localhost;Port=5432;Username=postgres;Password=1234;Database=contacts"));
services.AddScoped<IContactRepository, ContactRepository>();
services.AddControllers().AddNewtonsoftJson();

Migrations

As the development progresses, models and database schemas change over time
- This means that both the database and the code needs to be updated to match each other
Migrations allow for the database to keep in sync with the code schematically
- The data stored in the database is also preserved
EFCore migrations have built-in version control; a snapshot of each version of the schema is stored

Applying migrations

Open the Package Manager Console in Visual Studio
- If the tab is not in the bottom of the window, open it from
  View > Other windows > Package Manager Console
Add your initial migration by entering the command Add-Migration <name> to the console, for example Add-Migration InitialMigration
- This now creates the first "blueprint" of how the database should be structured
Update the database by entering the command Update-Database to the console
- This will update the existing database according to the ModelBuilder options

At this point, the values you have entered (Contacts table in this example) should show up in the database. You can check it up e.g. in pgAdmin.

Notice that the table and column names are initialized with a capital letter
- The value naming in psql is case sensitive \Rightarrow All names have to be in quotation marks!

Exercise 1: Adding Context

Continue working on the CourseAPI.

Create a new empty database course_db in pgAdmin or psql
Create a DbContext for the courses. Name it CoursesContext, and add a DbSet of type Course to it, named Courses
Add the OnModelCreating method to the context and add a couple of courses with some starting values to the modelBuilder
Add the CoursesContext to the services in Program.cs with a connection string pointing to course_db
Add the first migration and update the database from the Package Manager Console
Check that the Course table with the starting values has appeared to the database

Using DbContext in the API

Because DbContext is added to services, it can be accessed from any other service, such as the repository
Using the DbSet for each model in your project, CRUD operations can be applied to the database from the repository with LINQ and DbSet methods
- Add()
- Update()
- Remove()
After modifying the DbSet, update the changes to the database with the DbContext.SaveChanges() method

Injecting DbContext

Inject the DbContext to your repositories as you would any other service:

public class ContactRepository : IContactRepository
{
    private readonly ContactsContext _context;

    public ContactRepository(ContactsContext context)
    {
        _context = context;
    }
    //...
}

DbContext: Read Operations

public class ContactRepository : IContactRepository
{
    private readonly ContactsContext _context;
    public ContactRepository(ContactsContext context) { ... }

    public Contact GetContact(int id) =>
        _context.Contacts.FirstOrDefault(c => c.Id == id);

    public List<Contact> GetContacts() =>
        _context.Contacts.ToList();
}

DbContext: Create Operations

public class ContactRepository : IContactRepository
{
    private readonly ContactsContext _context;
    public ContactRepository(ContactsContext context) { ... }

    // Read operations
    // ...

    public void AddContact(Contact contact)
    {
        _context.Contacts.Add(contact);
        _context.SaveChanges();
    }
}

DbContext: Update Operations

public class ContactRepository : IContactRepository
{
    private readonly ContactsContext _context;
    public ContactRepository(ContactsContext context) { ... }

    // Read & create operations
    // ...

    public void UpdateContact(int id, Contact newContact)
    {
        var contact = GetContact(id);
        contact.Email = newContact.Email;
        contact.Name = newContact.Name;
        _context.Contacts.Update(contact);
        _context.SaveChanges();
    }
}

DbContext: Delete Operations

public class ContactRepository : IContactRepository
{
    private readonly ContactsContext _context;
    public ContactRepository(ContactsContext context) { ... }

    // Read, create & update operations
    // ...

    public void DeleteContact(int id)
    {
        _context.Contacts.Remove(GetContact(id));
        _context.SaveChanges();
    }
}

Exercise 2: CRUD on the DB

Continue working on CourseAPI.

Modify the CourseRepository to create, read, update and delete from the database instead of the locally stored list of courses
Test with Postman. Keep refreshing the DB in pgAdmin or creating queries with psql to make sure the requests work as intended

Summing Things Up

Now the API has been hooked up to a PostgreSQL database
Changes to the schema are kept up-to-date with migrations
Repository is processing CRUD operations to the database
Controllers accepting HTTP requests have access to the repository

EFCore Code First Checklist

Install required packages
Create DbContext for the database
Add DbContext to services
Add-Migration & Update-Database
Add CRUD operations to the database repository

Modifying the Relations

Let's change the structure of our Contacts API by adding a new class Account
- Instead of Contact directly having an Email, it will have an Account instead
- Account holds the information about the Email, as well as a Description about the nature of the account (personal, work, school etc.)
Emails will be removed from the Contacts table

// Models/Contact.cs
public class Contact
{
    public int Id { get; set; }
    public string Name { get; set; }
    public ICollection<Account> Accounts { get; set; }
}

// Models/Account.cs
public class Account
{
    public int Id { get; set; }
    public string Email { get; set; }
    public string Description { get; set; }
    public int ContactId { get; set; }
    public Contact Contact { get; set; }
}

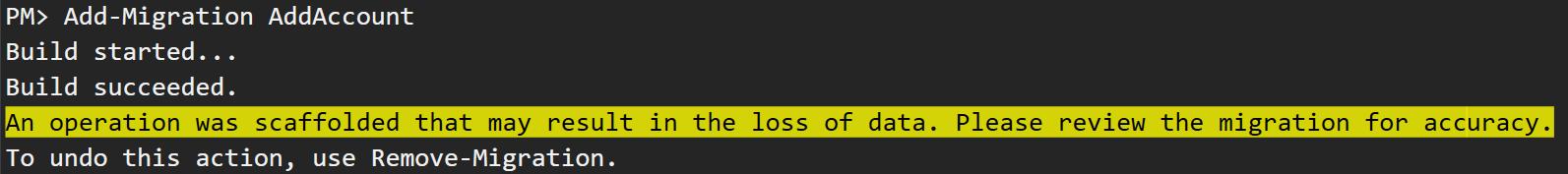

Adding a migration at this point will result in a warning:

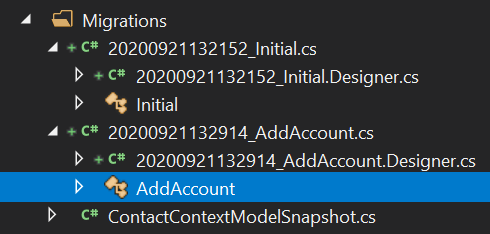

In the generated migration file, you can find Up and Down methods
- The Up method describes the changes that will be made with the migration
  - In this case, removing the Email column from Contacts table, and creating the new Accounts table
- The Down method describes the changes that will be made if the migration is reverted
Updating the database will still work, and the database will have a new table Accounts

Exercise 3: Adding Migrations
