Project management 1. Git basics

Repositories

  • Repository ("repo") is essentially a place to store code files in
  • Usually, we are dealing with two repositories: a local and a remote one
    • A local repository is the one on your computer
    • A remote repository is stored in a cloud service like GitHub
    • Here is an example of a remote repository on GitHub
    • Changes are synced between these two repositories manually

Git commands

  • You have to tell everything you want to happen to Git explicitly by using Git commands
  • Commands are of the form git commandname
  • Some commands include handles that give extra modifiers to the commands:
    • git commandname --handle or a shorthand git commandname -h

Getting started with GitLab

  • Go to www.gitlab.com and create a new account, if you don't already have one
  • If you have an existing GitHub account, you can use it to log into GitLab
    • (You'll need to set a password to GitLab after logging in)
  • After logging in, you can create a new project
    • This is what GitLab calls repositories
  • In GitLab, projects are located in groups or namespaces
  • You should have separate repositories for different programs
    • We will store future home assignments in a single repository
    • Larger projects will have their own repositories

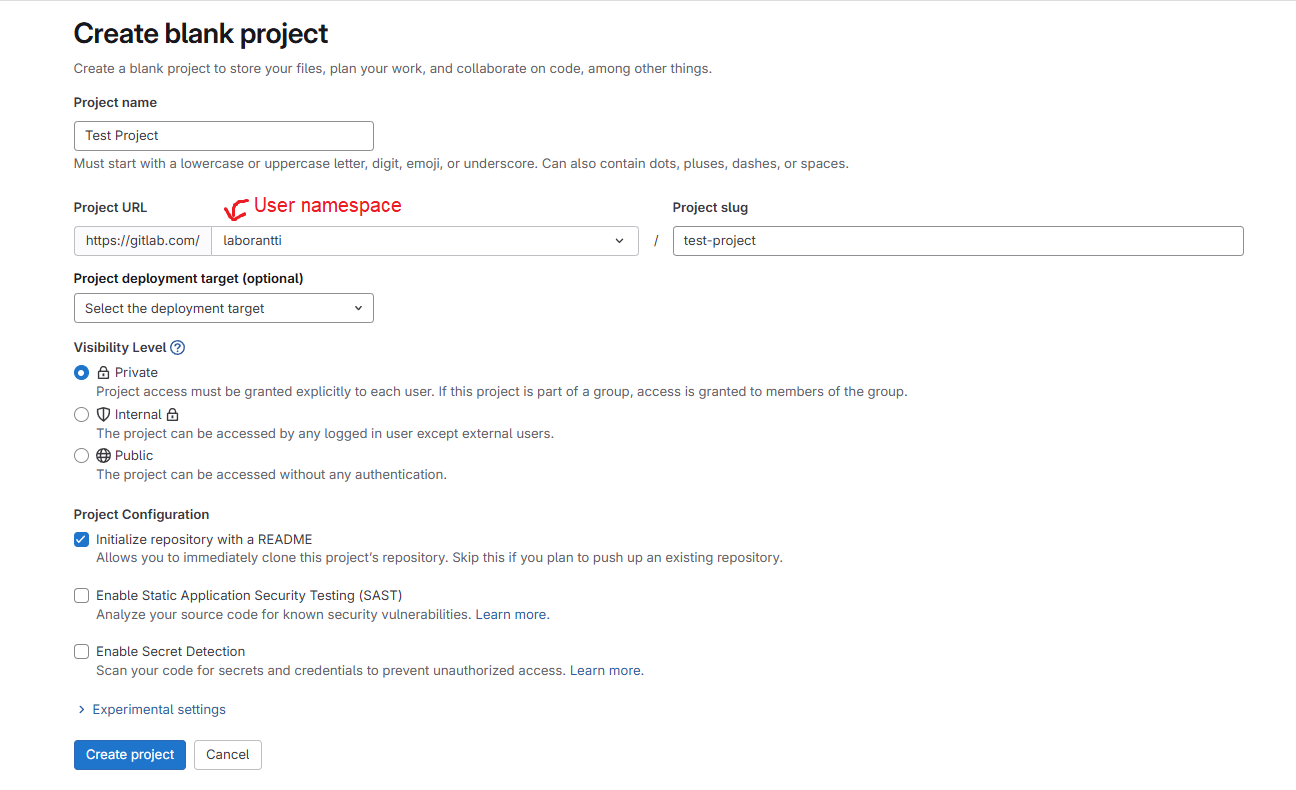

Creating a repository

  1. In GitLab, New Project > Create blank project
  2. Give a name to the project, which automatically becomes its URL (see: Project slug)
  3. Use your own user namespace (Good for personal projects)
  4. You can set project visibility to Private (only you can see it) or Public (anyone can see it)
  5. If you want, you can initialize the repository with a README.md file
    • It's a Markdown file, essentially a text file containing information about the project.
    • Note: These lectures are also written in Markdown, and you can use Markdown syntax to format text on Discord. It's neat!

Initializing a repository

  • Initialization needs to be done for every new Git repository
  • There are two ways to initialize a repo:
    • a) Creating the remote repository first / continuing an existing project:
      • Clone a remote repository into your computer (See: git clone)
    • b) Creating the local repository first with git init
  • Note: Never initialize a Git repository in a cloud storage folder!

.git folder

  • Initialization adds a hidden .git folder inside a directory
    • This is where Git stores all its repository data.
    • Do not touch it! Let Git handle its contents on its own.
  • The .git folder ONLY appears in the root directory of the repository
    • If you see the .git folder in any of the subdirectories of the repository, something has gone wrong!
      • You might have initialized a repository inside repository
      • This should never happen!

git clone

  • Remote repositories have an URL address that can be used to download the code to your machine
    • The address can be found under the Clone button in the repository webpage
  • Use the URL to download a remote repository:
    • Run git clone <URL>
    • Example: git clone https://github.com/borbware/unity-basics-course.git
    • Remember: this initializes the repo, so git init not needed.
  • Simplest way to create a new, empty repository:
    • 1 - Initialize the repo in the Github/Gitlab/etc website
    • 2 - Clone the repo.

Exercise 1a. Cloning a repo

Create a new repository on GitLab and clone it with HTTPS to your machine.

Basic Git workflow

  • A common Git workflow consists of three steps:
  • These are the steps you have to go through every time you want Git to know about the changes you've made!
  • So, after writing some changes, you do this:
  1. Stage: You tell Git what files you've changed (git add)
  2. Commit: You tell Git what changes you made in that file (git commit)
  3. Push: You upload those changes to a remote repository (git push)
width:

Note: git status

  • When inside a repository, using the command git status shows your current situation.
  • If you're unsure what to do, it's never a bad idea to run git status

git add

  • The first step is staging with git add:
    • The command git add readme.md stages the file readme.md
    • After doing it, git status tells this:
      Changes to be committed:
  (use "git restore --staged <file>..." to unstage)
        modified:   readme.md
  • With git add file, you tell Git that you have done something to file, and want to record those changes into Git history.
    • This doesn't record those changes yet! This is just a preparation step.
  • To undo git add readme.md, use git restore --staged readme.md
  • Note 1: Use git add <filename> -p if you only want to stage some lines from a file you've worked on.
  • Note 2: You can use git add . to stage all the files in your current folder and its subfolders at once
    • This is a neat way to shoot yourself in the foot and stage something you didn't intend to!

git commit

  • After you have staged all the files you want, the second step is to commit your changes
  • In the commit, you will explain what changes you've made
    • This message will be visible in the Git history
    • git commit -m "add new feature"
    • Commit message should clearly, concisely tell what kind of changes you have made
    • Prefer present tense ("Do x" instead of "Did x")
  • Every new commit creates a new point in the project timeline.
    • You can always jump between different points in timeline (See git checkout)

git push

  • The third step is pushing the changes to a remote repository
  • The previously-made commit action is local
    • No changes have gone to the remote repository yet!
    • To upload changes to the remote repository, use git push
    • Then you're done, and you can check your changes are visible in the remote repository

Setting upstream

  • Note: When pushing for the first time, Git might nag you:
    fatal: The current branch master has no upstream branch.
To push the current branch and set the remote as upstream, use

    git push --set-upstream origin main
  • You can just follow its orders (see the command on the third line!) and you're good to go
  • Generally, when Git gives you a warning, error, or some other message, it's a good idea to read it and follow the orders.

Exercise 1b. Pushing changes

Continue the previous exercise.

  1. In your local repository, create a new file GitTest.md with some lines of text in it.
  2. Commit and push changes to GitLab.
  3. Go to GitLab and see that the file is there!

git init

  • git clone always creates a new folder for a project
  • If we have started working on a project without using Git, and have a project folder locally, it might be easier to use git init to initialize the project instead
  • To do so, navigate to your project folder in the command line, and use git init to make your current folder a new Git repository

git remote

  • Now, your local repo needs to be connected to a remote repository
    • Create an empty remote repo with no Readme file, so your remote repository doesn't clash with your local one.
  • If you have initialized a Git repo with git init, you can't use git clone to connect your local repo to a remote one
    • Instead, run git remote add origin <URL>
    • Here, the name origin refers to the remote repository
    • origin is just the default name for a remote: other names can be used as well
  • To check which remote repository the current local repository is linked to, use
    • git remote -v
A repository can have multiple remotes. Use git remote to list them all.

Exercise 2. Initializing a repo the local way

  1. Initialize a new repository locally with git init.
  2. Create a new file GitTest.md with some lines of text in it.
  3. Commit changes.
  4. Create a new empty repository on GitHub.
  5. Use git remote add origin <url> to connect your local repo to the GitHub repo.
  6. Push changes to GitHub. Go to GitHub and see that GitTest.md is there!

git pull

  • git pull applies changes from the remote repository into the local repository
    • Counterpart to push, but does actually two commands in one
    • It's the same thing as doing git fetch <branch>, and then git merge <branch>"
  • Using git pull is very common when working in a team
    • Note: During teamwork it's a good idea to always pull before pushing
  • If you only work alone on a single computer, seldom needed

Extra: HTTPS vs SSH

  • There are two ways to communicate with GitHub, HTTPS and SSH
  • HTTPS: https://github.com/borbware/unity-basics-course.git
    • The easier way
    • You log in with your GitLab credentials that get stored in the Git Credential Manager
  • SSH: git@github.com:borbware/unity-basics-course.git

.gitignore

  • Sometimes your project has local files that should NOT be uploaded to GitLab
    • List those files in a .gitignore file in your Git project folder
  • You can create it by yourself and define file names or folders which Git will then ignore in the commits, e.g.,
      someScript.cs
  /folder
  *.html
  • Note: If you add a file to .gitignore that was committed earlier, Git doesn't "forget" it automatically
    • You can make Git forget it with git rm --cached filename
width:

VS code: Source control

  • The source control tab is very useful for managing your Git workflow
  • Unstaged changes are shown under Changes
    • Press "" to stage a file
  • Staged files are shown under Staged changes
    • Press "" to unstage a file
    • Press " 📄" to open the file
  • Click the filename to see what changes you've made in a side-by-side comparison view (see the next slide!)
  • Press "" to discard the changes made to the file (be careful!)

Exercise 3. Git collaboration

Work on this exercise with your group.

  1. Choose someone's test repository from Exercise 1a to use in this exercise.
  2. While others clone the repo to their machine, the owner should add other group members as collaborators of the repo in the repository's settings on GitLab.
    • Left sidebar: Manage > Members
    • Click Invite members and add others as Developer or Maintainer.
  3. Then, everyone should make changes to the markdown file in the repository!

What happens if you make changes to the same line simultaneously?

Note about longer push and pull commands

  • After initialization, why don't push and pull commands work?
    • Answer: because when you don't clone the repo, but add the remote into an empty repo with git remote add origin, the remote and local branches aren't connected yet.
      • Thus, Git doesn't yet know which branch to pull from
      • You can decide it manually on each pull with git pull origin main
    • The branches can be connected in the first push with git push --set-upstream origin main
    • Afterwards, we can just use git push and git pull.

Troubleshooting: master vs. main

error: failed to push some refs to [your-url]
  • Possible reason: GitLab has a main branch, while your local repository has master
  • Fix: Run git branch -m main to rename your local master to main
