--- marp: true paginate: true math: mathjax theme: buutti title: 1. Introduction to Visual Studio --- # Introduction to Visual Studio ## Overview * [Visual Studio](https://visualstudio.microsoft.com/) An IDE (Integrated development environment) by Microsoft for Windows * Used for C#, C++, etc * There's a free Community edition * Multiple versions released * First version: 1997 * 2017, 2019, 2022... ## Features * [Debug tools](https://learn.microsoft.com/en-us/visualstudio/debugger/?view=vs-2022) * [Build tools](https://learn.microsoft.com/en-us/visualstudio/ide/compiling-and-building-in-visual-studio?view=vs-2022) * [IntelliSense](https://learn.microsoft.com/en-gb/visualstudio/ide/visual-csharp-intellisense?view=vs-2022) * code completion aid * automatic code generation * [GitHub Copilot](https://learn.microsoft.com/en-us/visualstudio/ide/visual-studio-github-copilot-extension?view=vs-2022) and [IntelliCode](https://learn.microsoft.com/en-us/visualstudio/ide/intellicode-visual-studio?view=vs-2022), AI-assisted code development in VS * [Git integration](https://learn.microsoft.com/en-us/visualstudio/version-control/git-with-visual-studio?view=vs-2022) * [Testing tools](https://learn.microsoft.com/en-us/visualstudio/test/?view=vs-2022) * [Profiling and diagnostics tools](https://learn.microsoft.com/en-us/visualstudio/profiling/?view=vs-2022) ## Visual Studio vs Visual Studio Code (VS VS VSC) * Visual Studio is not to be confused with [Visual Studio Code](https://code.visualstudio.com/), a separate software by Microsoft * Visual Studio is out of the box a full-blown IDE with many built-in features * Visual Studio Code is more akin to text editors like Sublime Text, Atom etc. * Most features like IntelliSense or code completion have to be installed via ***plugins*** * While both can be used for many programming languages, for C# and ASP.NET Visual Studio is preferred due to its extensive debugging and build tools ## Installing Visual Studio * Download Visual Studio Community (the free version) [here](https://visualstudio.microsoft.com/vs/community/)

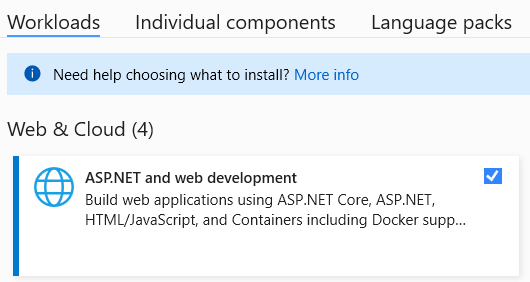

* After launching the setup executable, you will be prompted to select the components to be installed along with VS * For our purposes you will need ***ASP.NET and web development*** found in the ***Workloads*** tab
![](imgs/1%20Introduction%20to%20C%23%20and%20NET_1.png)
* Click ***Install*** in the lower right corner to begin installing VS and the required components * After installing VS, you can skip the account creation portion * ***Note:*** Installation size can be quite large (8 GB+) depending on which components are already installed on your system ## Projects and solutions * In Visual Studio, there are two key concepts, ***projects*** and ***solutions*** * Here's Microsoft's documents for [what they are](https://learn.microsoft.com/en-us/visualstudio/ide/solutions-and-projects-in-visual-studio?view=vs-2022&source=recommendations) and [how to create them](https://learn.microsoft.com/en-gb/visualstudio/get-started/tutorial-projects-solutions?view=vs-2022) * A ***project*** contains all files that are compiled into an executable application * Source code, images, data files, etc * Compiler settings, configuration files * In C#, handled by the project file `.csproj` by [MSBuild](https://learn.microsoft.com/en-us/visualstudio/msbuild/msbuild?view=vs-2022) * [Creating a new project](https://learn.microsoft.com/en-us/visualstudio/ide/create-new-project?view=vs-2022) * A ***solution*** contains one or multiple projects * Build information, Visual Studio window settings * Files that aren't associated with a particular project * `.sln` is the solution file, `.suo` contains Solution User Options ## Visual Studio UI
![w:800](https://devblogs.microsoft.com/visualstudio/wp-content/uploads/sites/4/2023/05/a-design-mock-of-the-new-visual-studio-ui-in-dark.png)
Default view in Visual Studio consists of three panels. 1) Code editor 2) [Solution Explorer](https://learn.microsoft.com/en-us/visualstudio/ide/use-solution-explorer?view=vs-2022) (*CTRL+ALT+L*) shows the files in the project 3) **_Terminal_** (*CTRL+Ö*) for entering command line commands (e.g., for using Git)
## Moving windows around

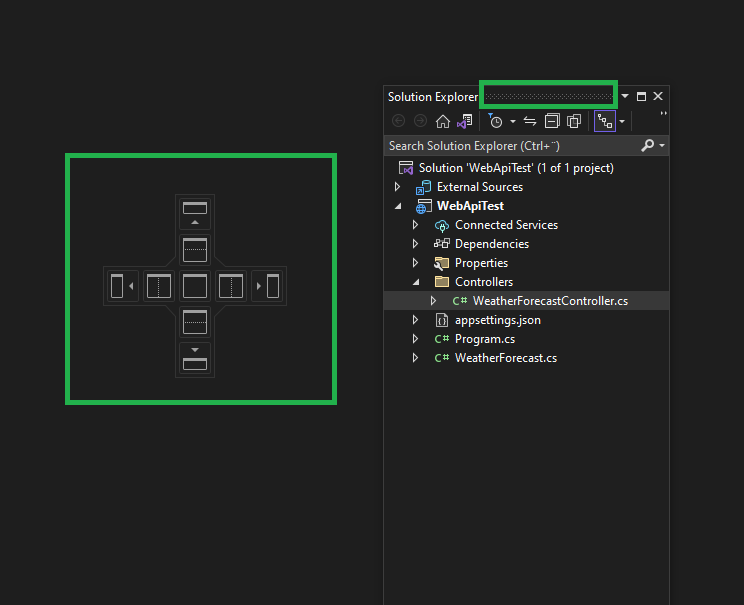

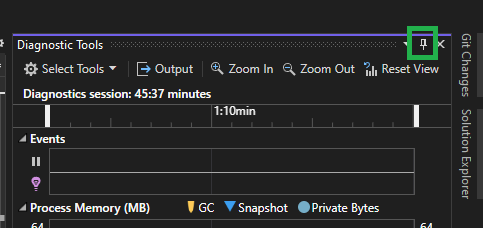

* Drag and hold windows to move them around * _Snap to layout_ window appears * After moving a window to the right, you can pin it to see its title on the right ![](imgs/15%20Introduction%20to%20Visual%20Studio_2.png)
![](imgs/15%20Introduction%20to%20Visual%20Studio_1.png)
## Error highlighting in Visual Studio 2022 * Visual Studio highlights errors in code automatically.

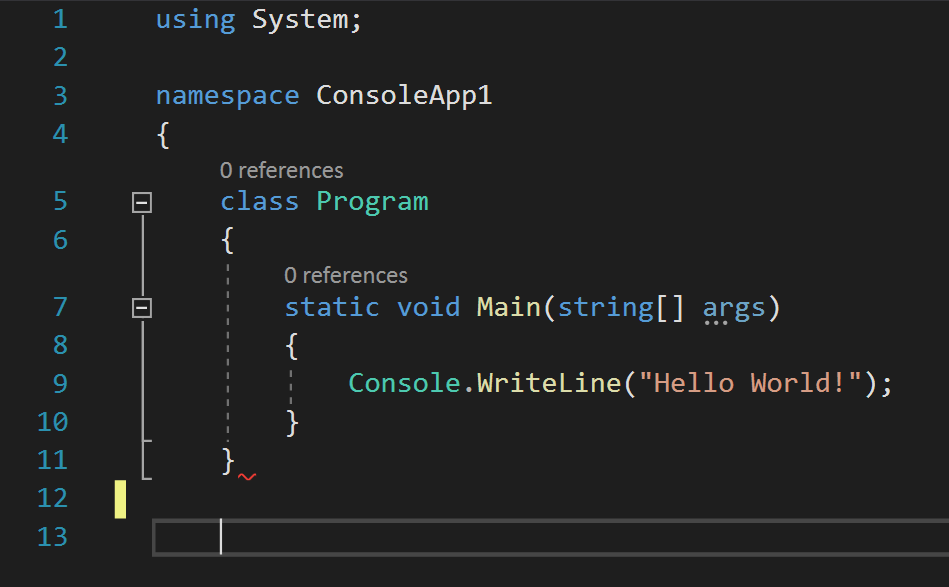

![](imgs/1%20Introduction%20to%20C%23%20and%20NET_4.png) * Why is this throwing an error? * $\Rightarrow$ Missing one closing curly bracket!
* Hovering on the red underline will show a hint for the error: ![](imgs/1%20Introduction%20to%20C%23%20and%20NET_5.png) * All errors can be displayed by pressing the red X at the bottom: ![](imgs/1%20Introduction%20to%20C%23%20and%20NET_6.png) ## Keyboard shortcuts * *CTRL+.* * If a type is missing, use this to add the needed using directive * *CTRL+R*, then *CTRL+R* (seriously?) * Rename variable * Press Enter to confirm * *CTRL+C* (without selecting), then *CTRL+V* * Duplicate line * *ALT+Up*, *ALT+Down* * Move line up/down * [Visual Studio Default keyboard shortcuts](https://visualstudio.microsoft.com/vs/features/develop/) ## Gotchas * Some actions are unavailable when your app is running * Deleting files * Adding new controllers ## Exercise 1. Creating a console application 1) Open Visual Studio 2022. 2) Select *Create a new project* 3) Type *console* to the search bar and select the following template: ![](imgs/1%20Introduction%20to%20C%23%20and%20NET_3.png) ## Exercise 2. Running a console application 1) To run your program, select *Debug > Start Debugging*, or press F5, or press the small ▶ sign next to your project name at the top * The template project should now run and print `Hello World!` to the console. 2) Try changing the code so that it prints something else! ## Reading * [Visual Studio Documentation: Overview](https://learn.microsoft.com/en-gb/visualstudio/get-started/visual-studio-ide?view=vs-2022) * [Visual Studio tutorials | C#](https://learn.microsoft.com/en-us/visualstudio/get-started/csharp/?view=vs-2022) * [Tutorial: Create a .NET console application using Visual Studio](https://learn.microsoft.com/en-gb/dotnet/core/tutorials/with-visual-studio)
